Reversing Camera & 7" Monitor For Peugeot Boxer, Citroen Relay, Citroen Jumper, Fiat Ducato 2007 - 2022

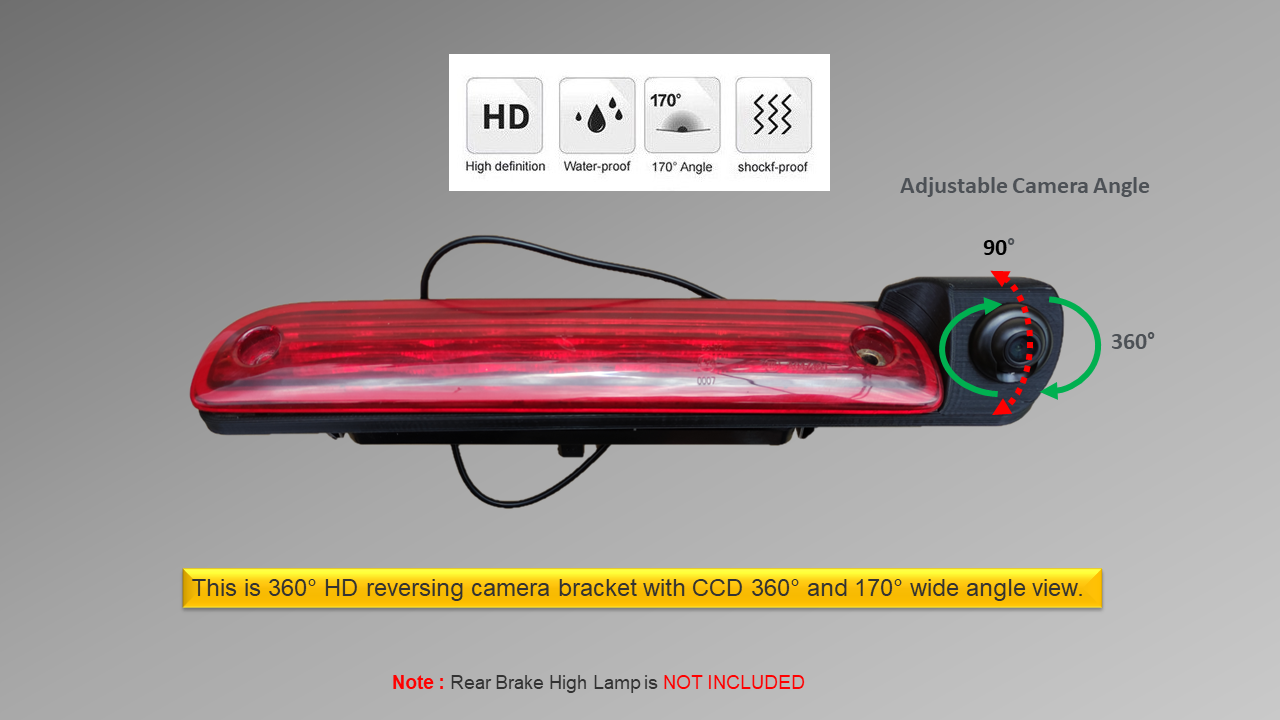

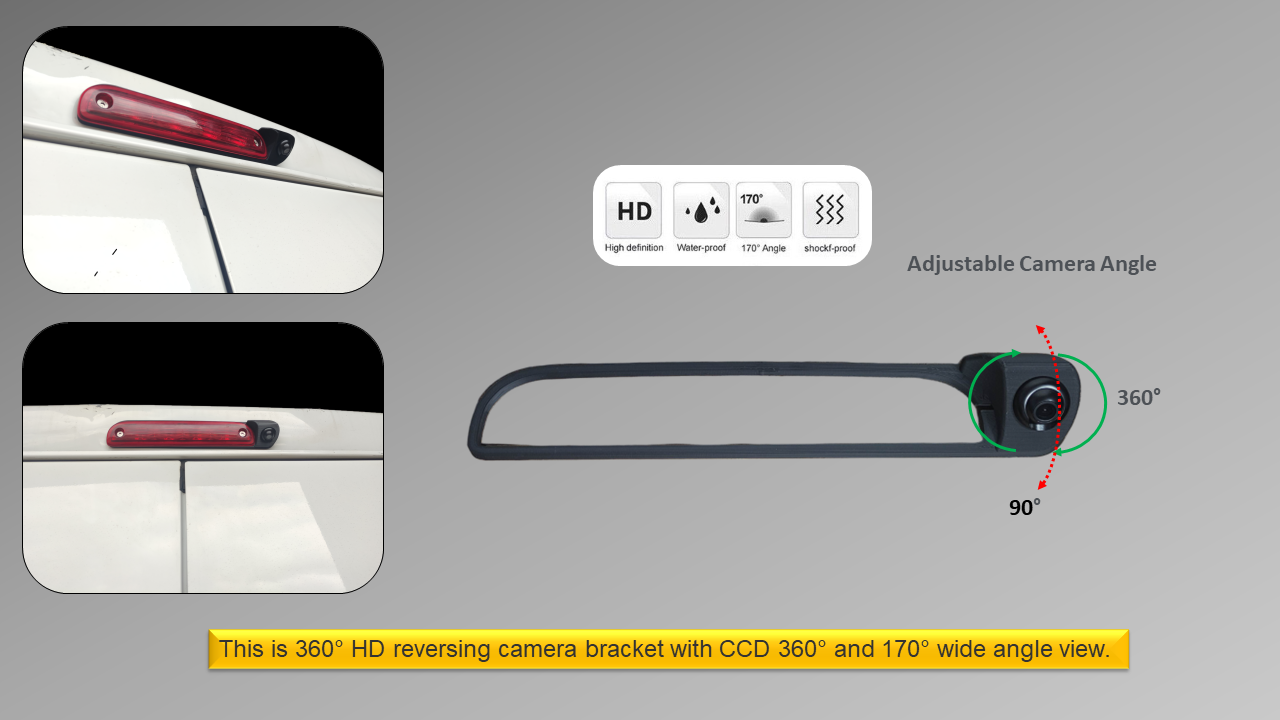

360° HD reversing universal camera with CCD360° and 170° wide angle view. It provides security and high-quality image. Video displays on car DVD player, monitor etc.
Reverse cameras are small, wide-angle cameras mounted in the rear of a vehicle, and connected either to the infotainment screen on the instrument panel, or a small monitor in the rear-view mirror itself. When the driver starts reversing, the camera screen automatically appears to show the rear of the car.

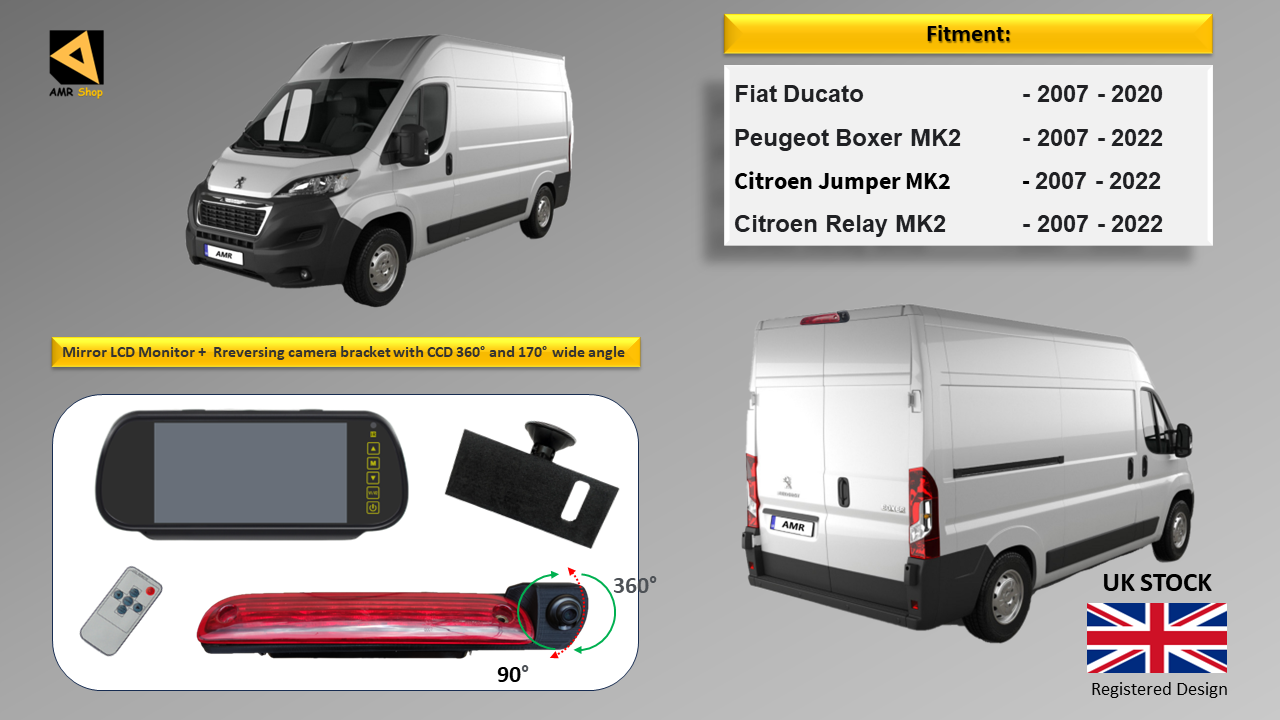

Fitment:

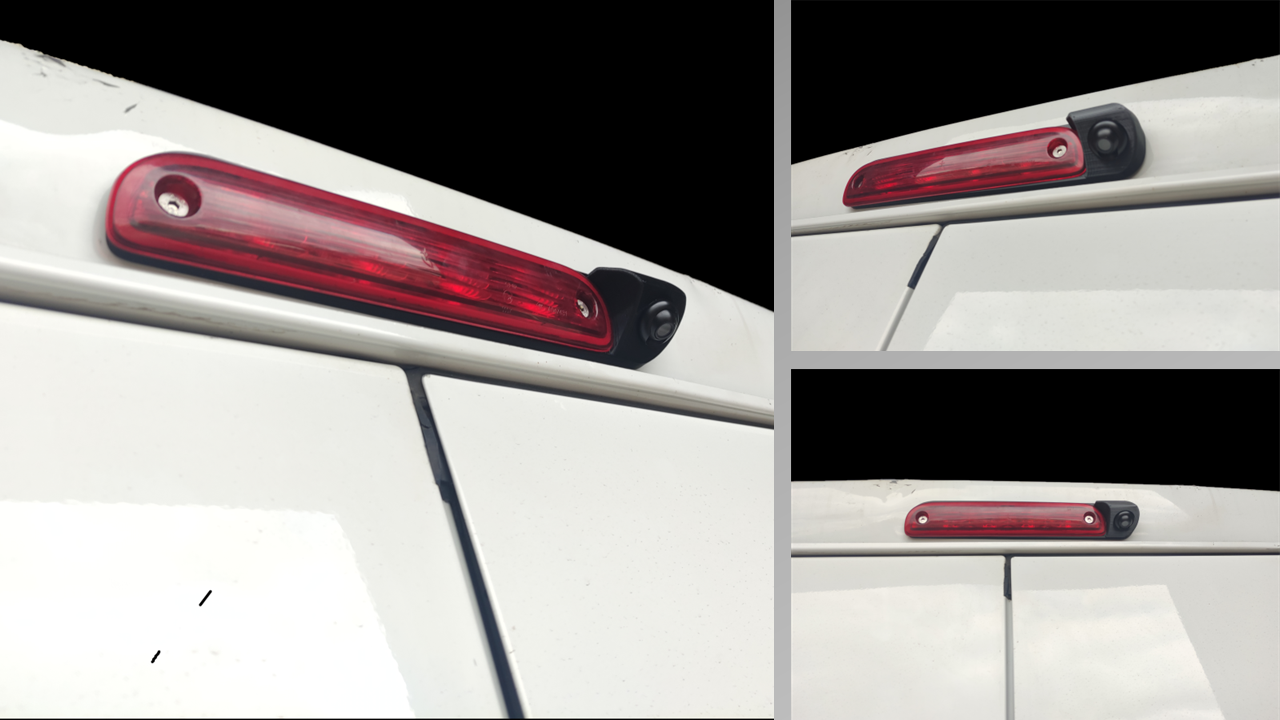

Peugeot Boxer MK2 2007 - 2022
Citroen Relay MK2 2007 - 2022
Citroen Jumper MK2 2007 - 2022
Fiat Ducato MK2 2007 - 2020
Camera Features:
Colour : Black
HD 170° wide angle view
Image area:3.584 mm *2.688 mm
TV system: PAL/NTSC
Scanning system: 2:1 interlace
S / N ratio : more than 48dB
Support CCD Colour sensor
Video output: 1.0VP-P,75 OHM
Waterproof design: IP67
Work condition: -20°to 75°/RH95% max
Power supply: DC 12V
Length of the video cable : 600cm
Automatic Backlight Compensation BLC and AGC
Min Illumination:0.01 Lux/F=1.2(0 Lux with IR on)

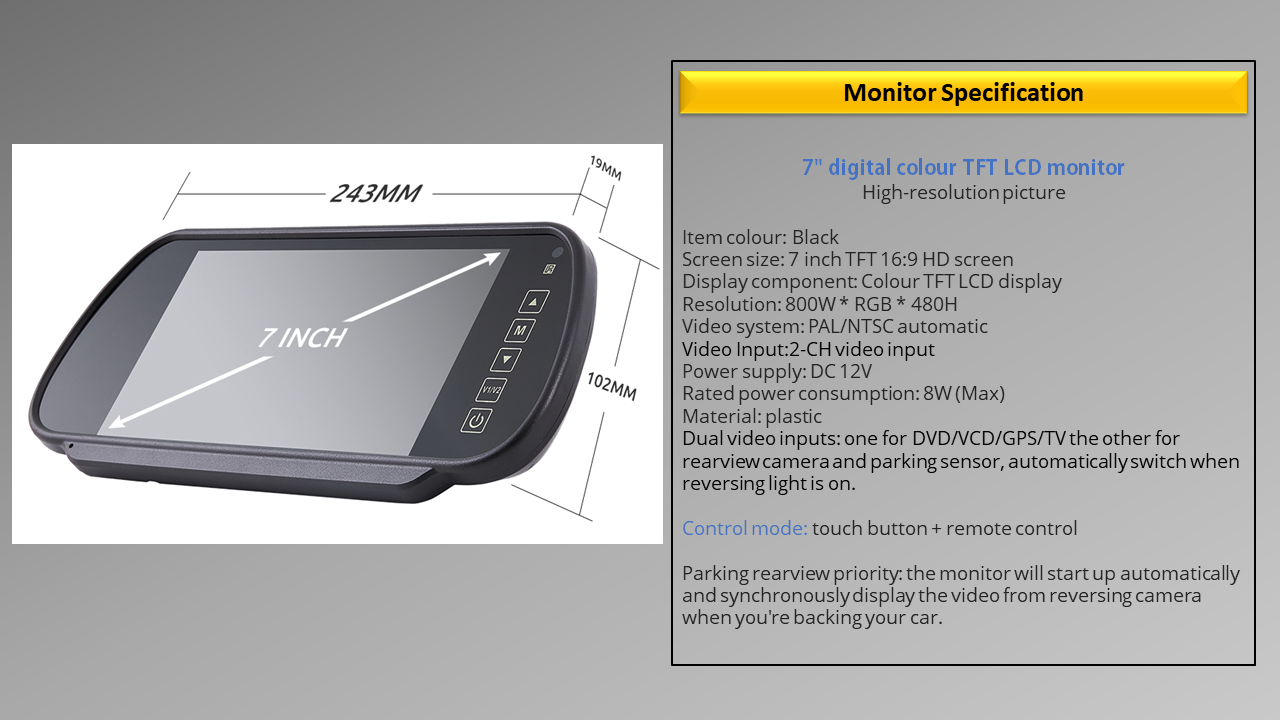

Monitor Features:
Screen size: 7 inch
Resolution: 800 × RGB x 480
Format: NTSC / PAL (Auto)
Backlight: LED
Operating temperature range: -20 ~ 70°
Power consumption: 7W

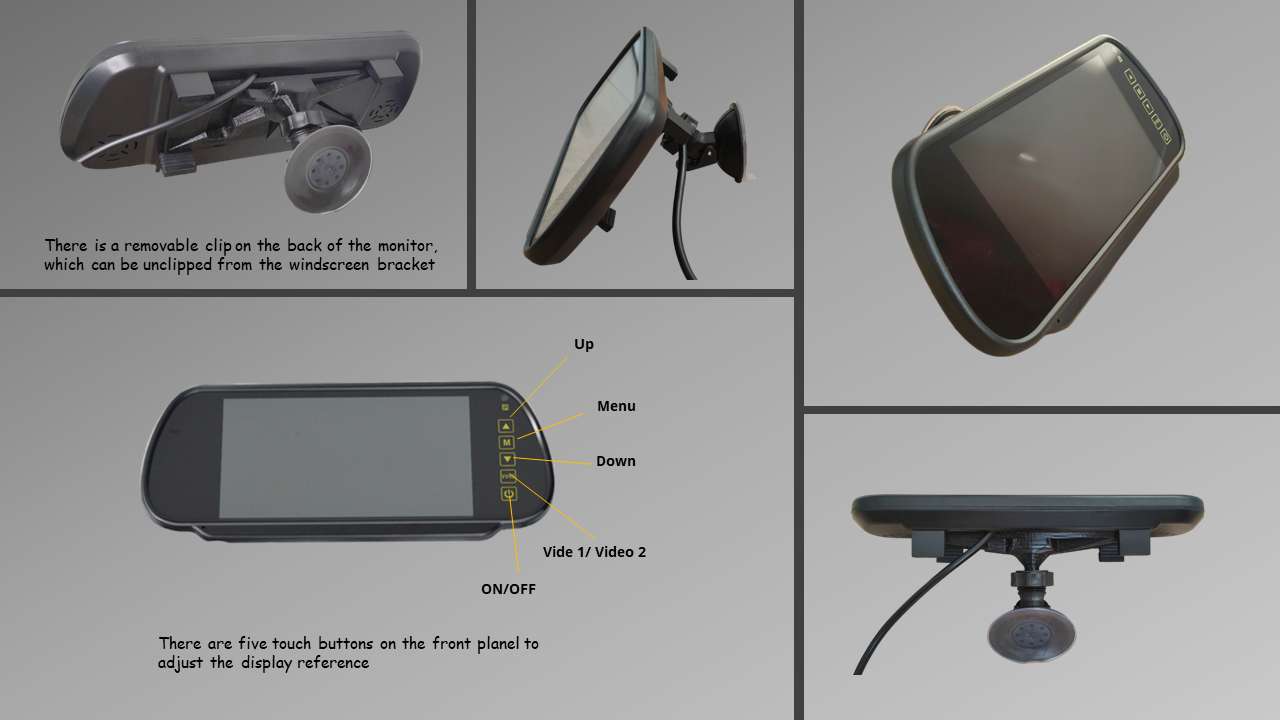

Key features: menu key, arrow keys
Signal Input: two-way AV video input

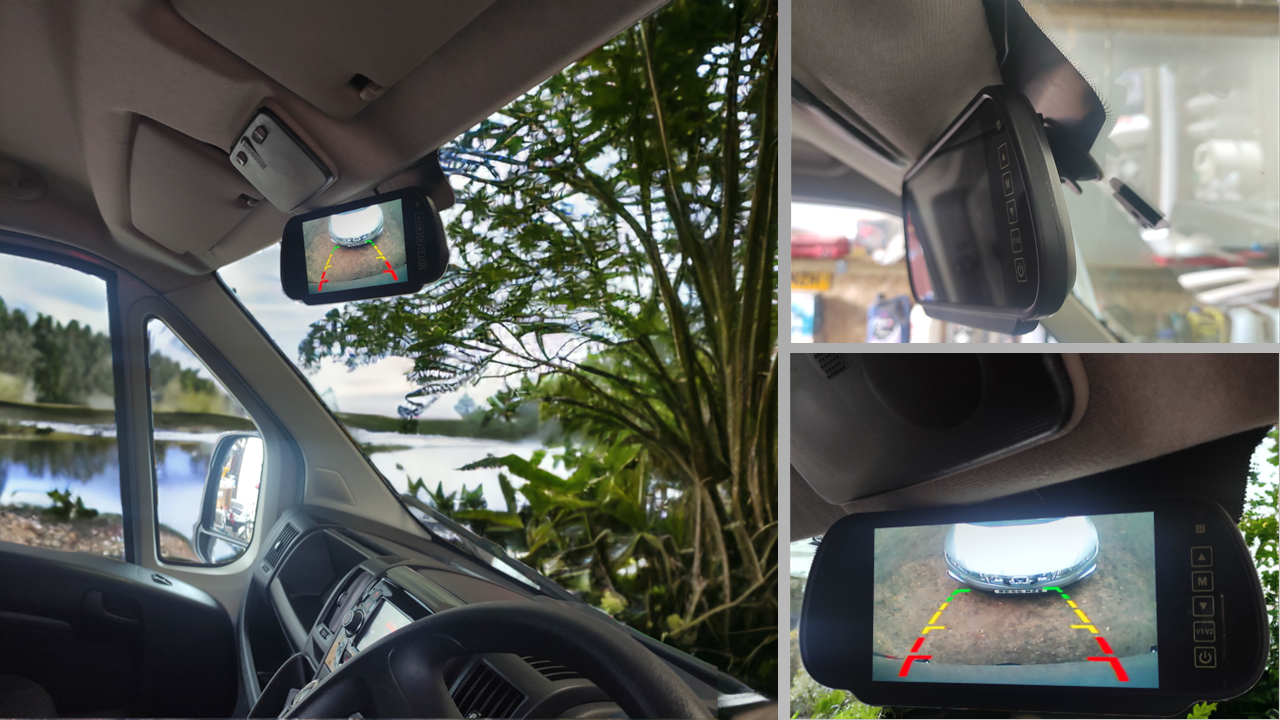

Parking rear-view priority: the monitor will start up automatically and synchronously display the video from reversing camera when you're reversing your van.
The brightness, contrast, and colour are adjustable through the buttons at the front of the monitor.
