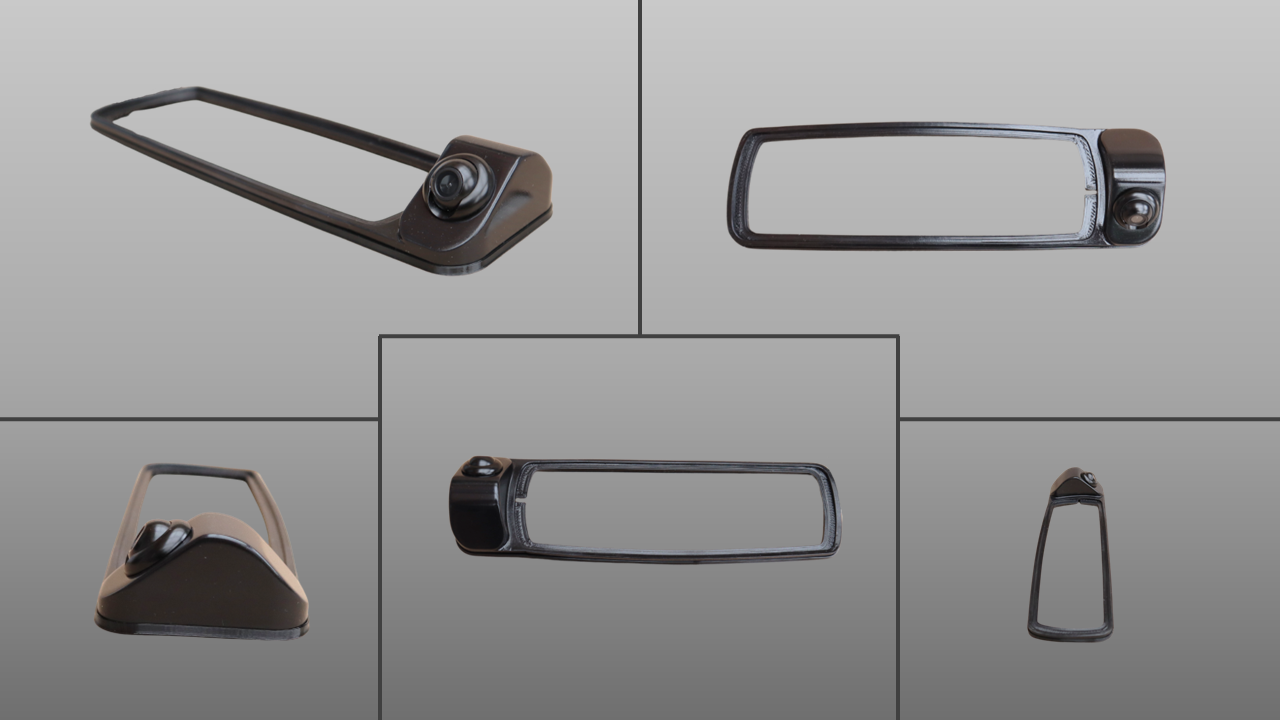

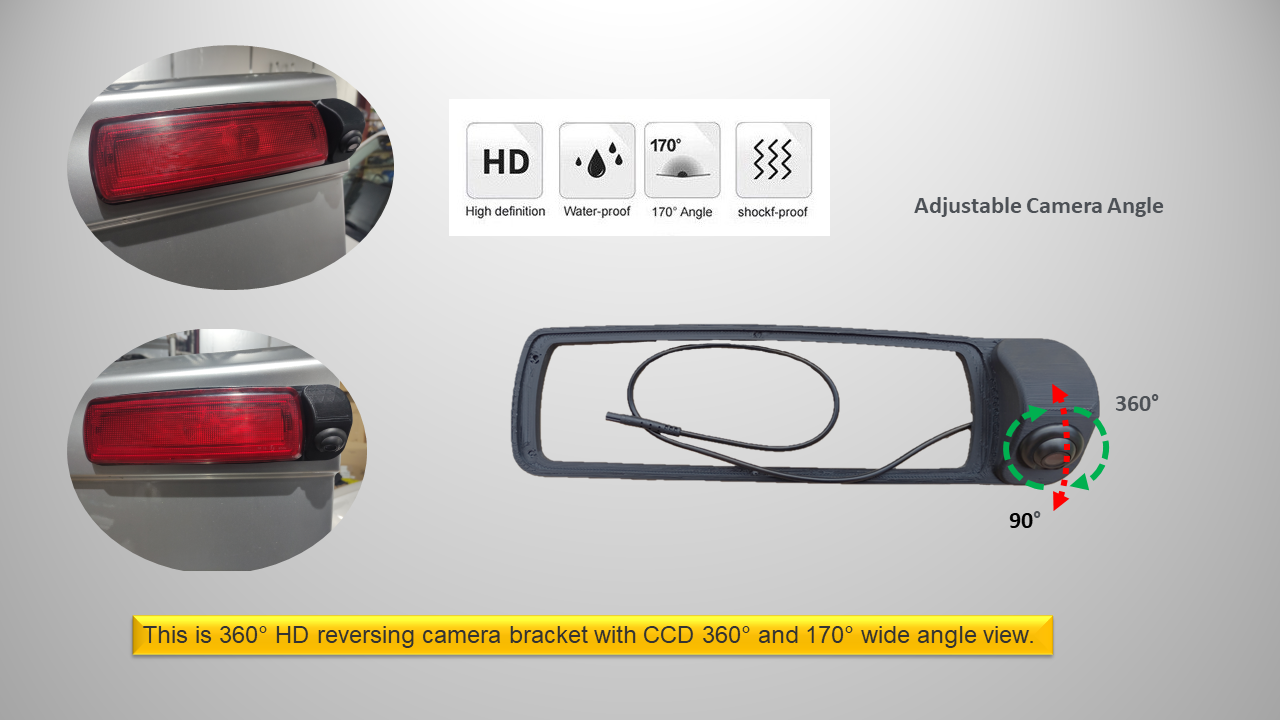

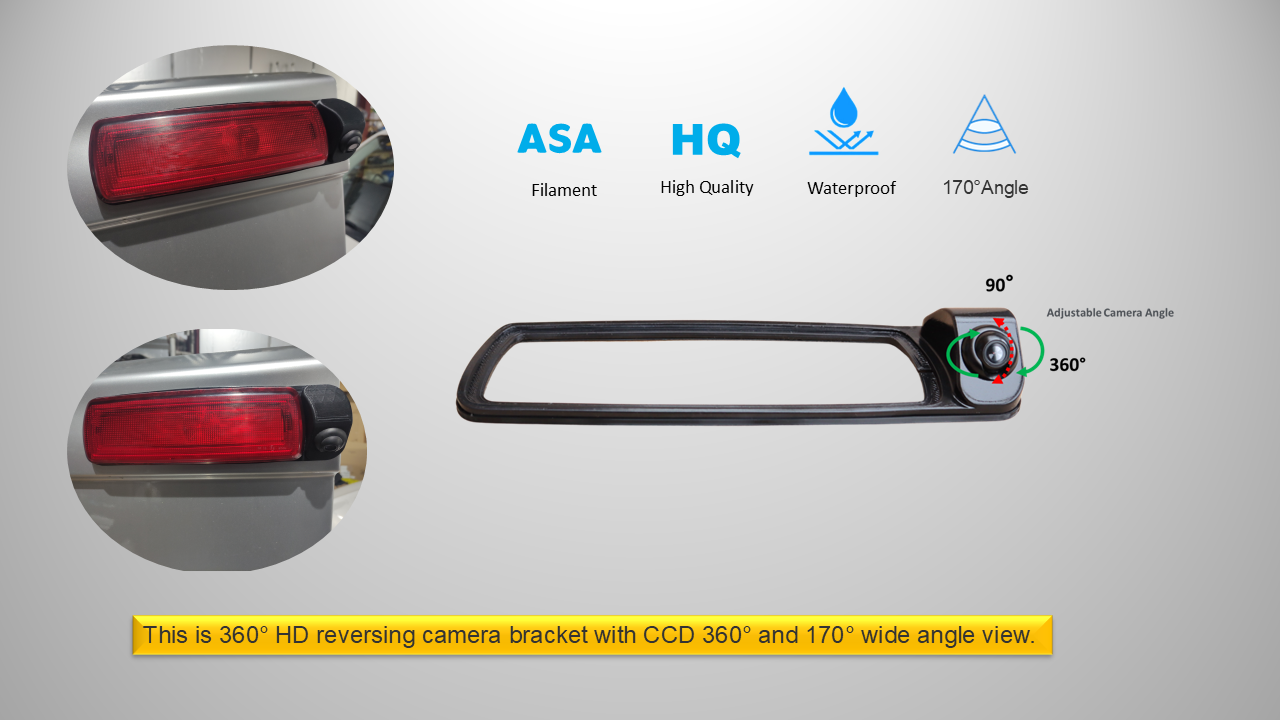

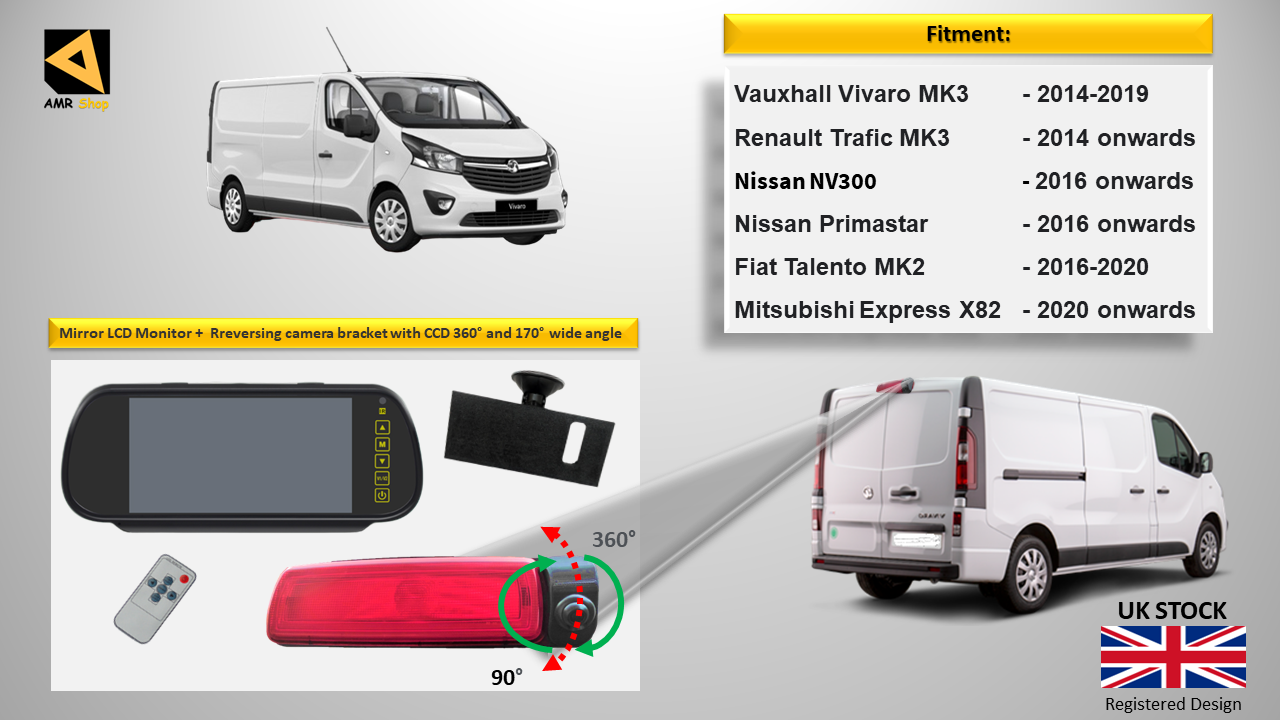

360° HD reversing universal camera with CCD360° and 170° wide angle view. It provides security and high-quality image. Video displays on car DVD player, monitor etc.

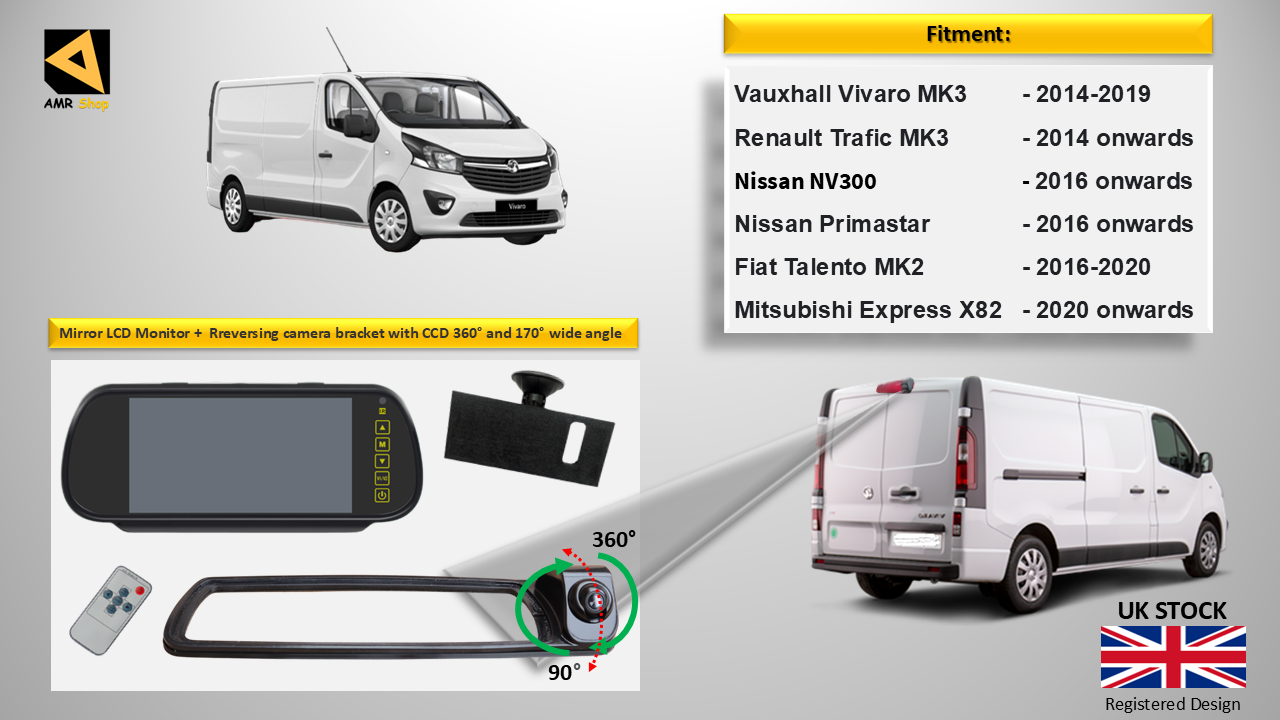

Fitment:
Vauxhall Vivaro MK3 2014-2019
Renault Traffic MK3 2014 onwards
Nissan NV300 2016 onwards
Nissan Primastar 2016 onwards
Fiat Talento MK2 2016-2020
Mitsubishi Express X82 2020 onwards
Camera Features:
Color : Black
HD 170° wide angle view
Image area:3.584 mm *2.688 mm
TV system: PAL/NTSC
Scanning system: 2:1 interlace
S / N ratio : more than 48dB
Support CCD Color sensor
Video output: 1.0VP-P,75 OHM
Waterproof design: IP67
Work condition: -20°to 75°/RH95% max
Power supply: DC 12V
Length of the video cable : 600cm
Automatic Backlight Compensation BLC and AGC
Min Illumination:0.01 Lux/F=1.2(0 Lux with IR on)

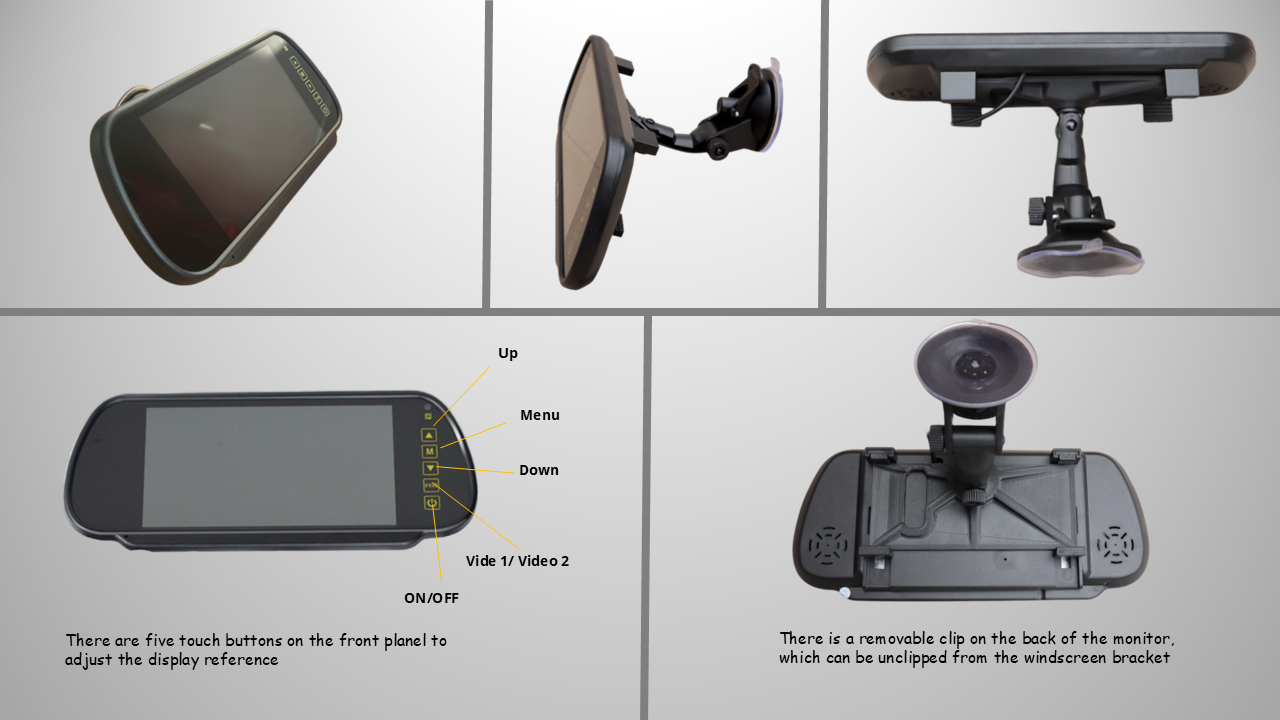

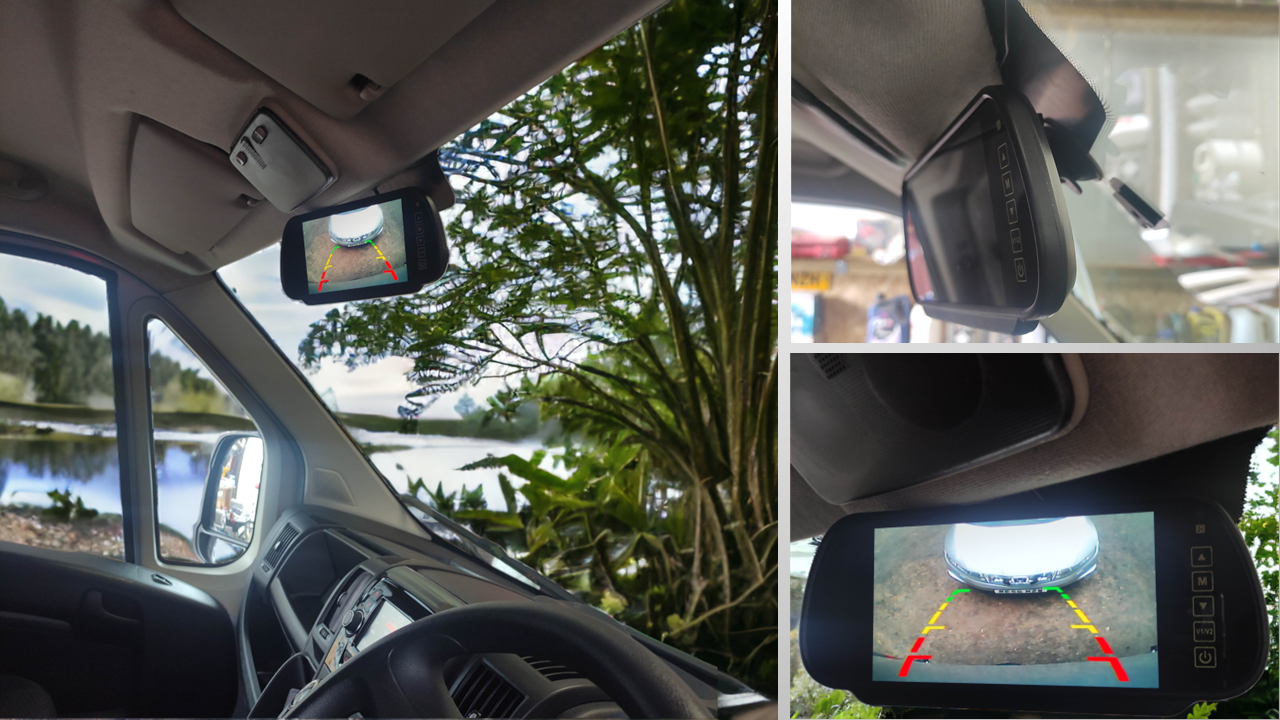

Monitor Features:
Screen size: 7 inch
Resolution: 800 × RGB x 480
Format: NTSC / PAL (Auto)
Backlight: LED
Operating temperature range: -20 ~ 70°
Power consumption: 8W
Key features: menu key, arrow keys
Signal Input: two-way AV video input

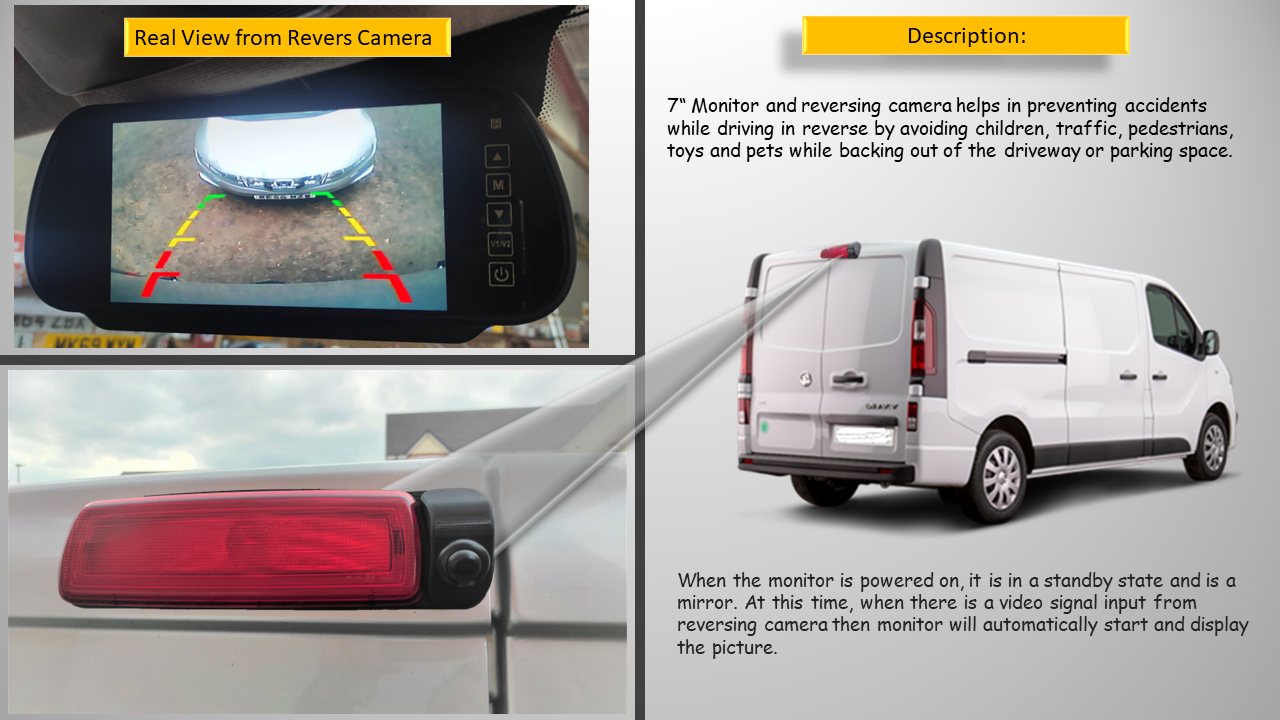

Parking rear-view priority: the monitor will start up automatically and synchronously display the video from reversing camera when you're reversing your van.

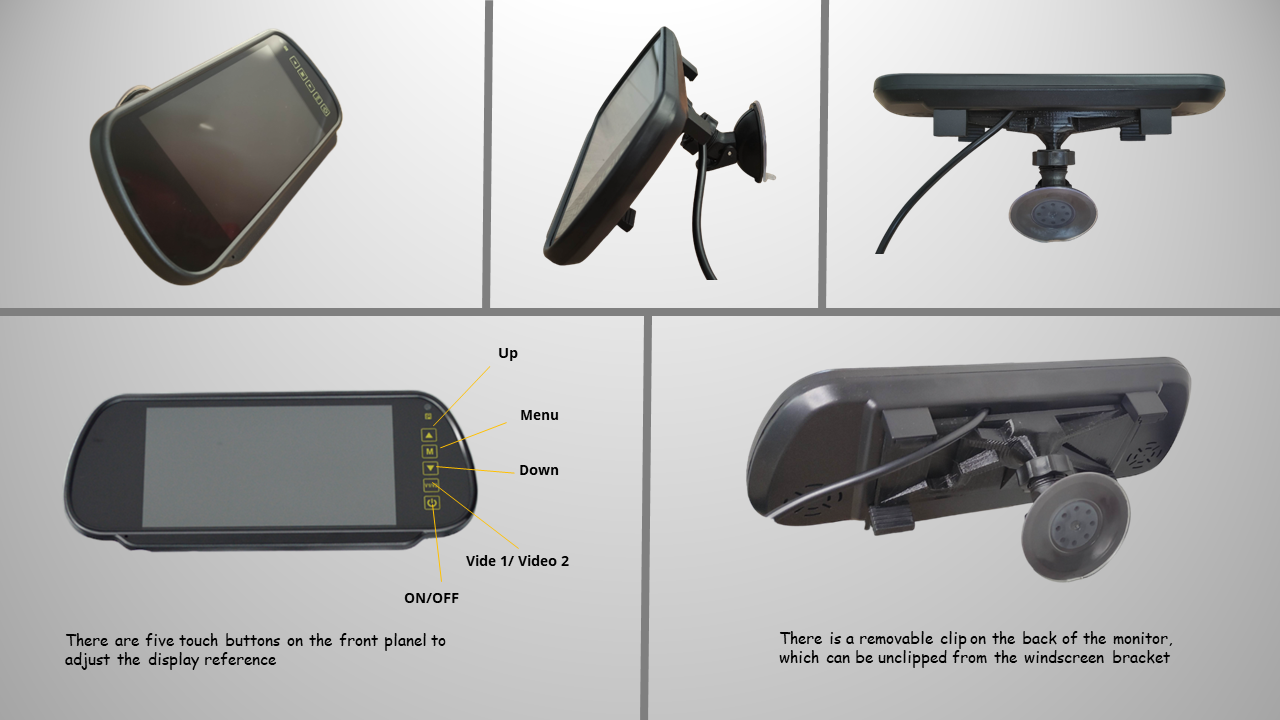

The brightness, contrast, and colour are adjustable through the buttons at the front of the monitor.
