Features
● 100% brand new and high quality
● Support colour CCD image
● Support NTSC TV system

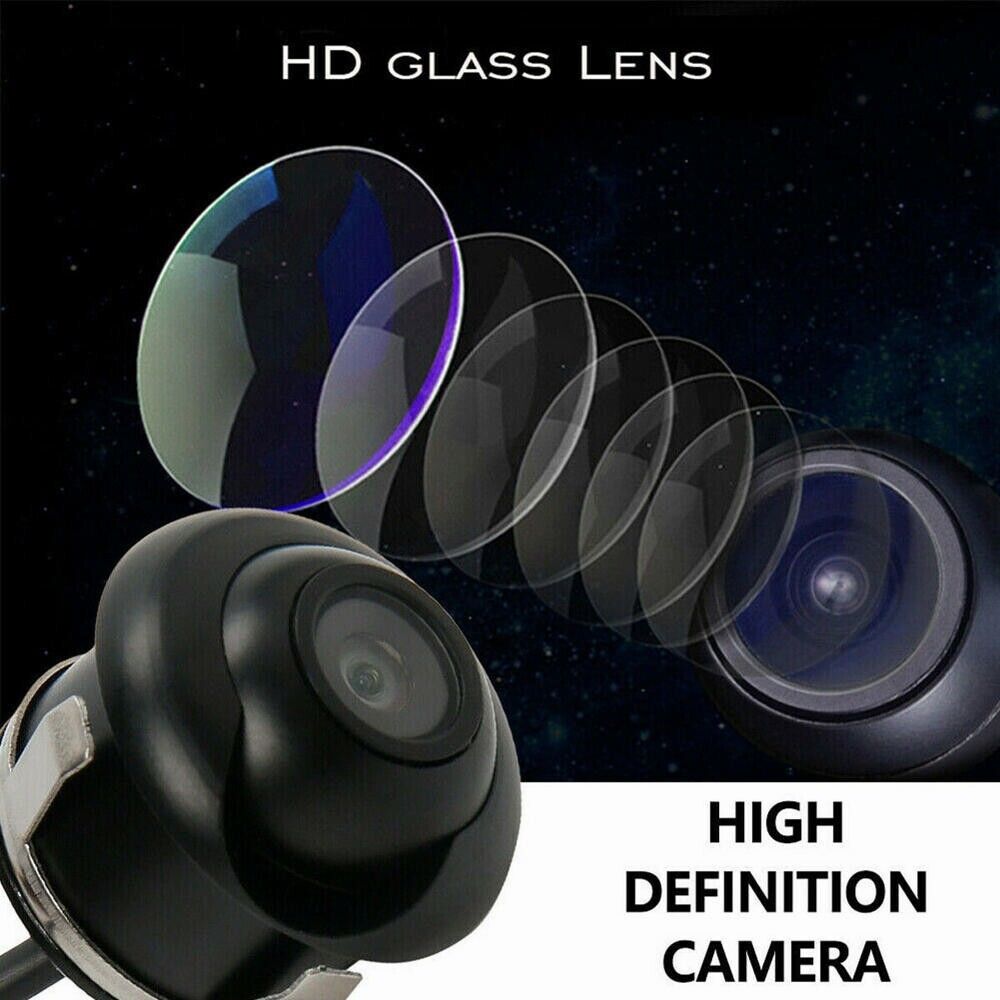

● High definition and a wide viewing angle
● Made of high quality and durable material

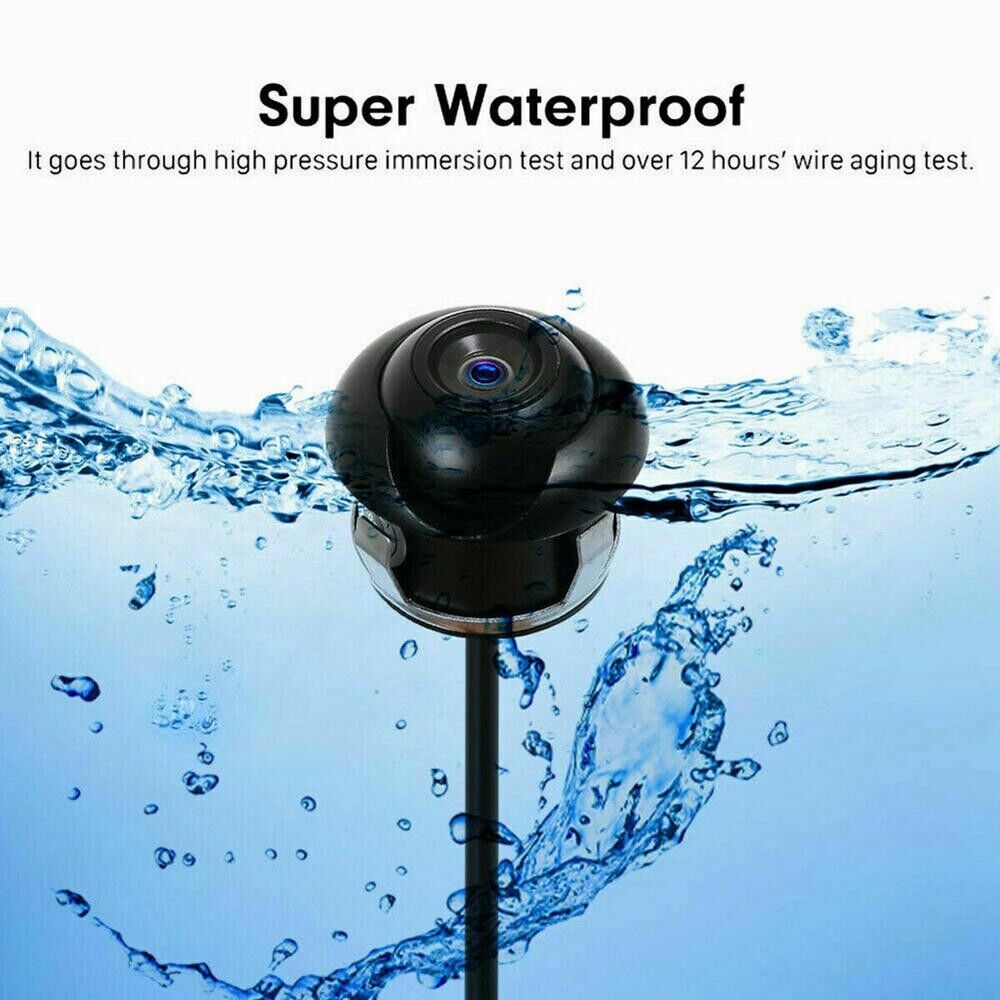

● With good waterproof function
● With its sleek and modern design, this camera is very popular
Specifications:
● S / N ratio: more than 48 dB
● Image sensor: CCD
● Effective Pixels: NTSC: 648 * 488
● Minimum lighting: 1.5Lux / F1.2 (0 Lux with LED)

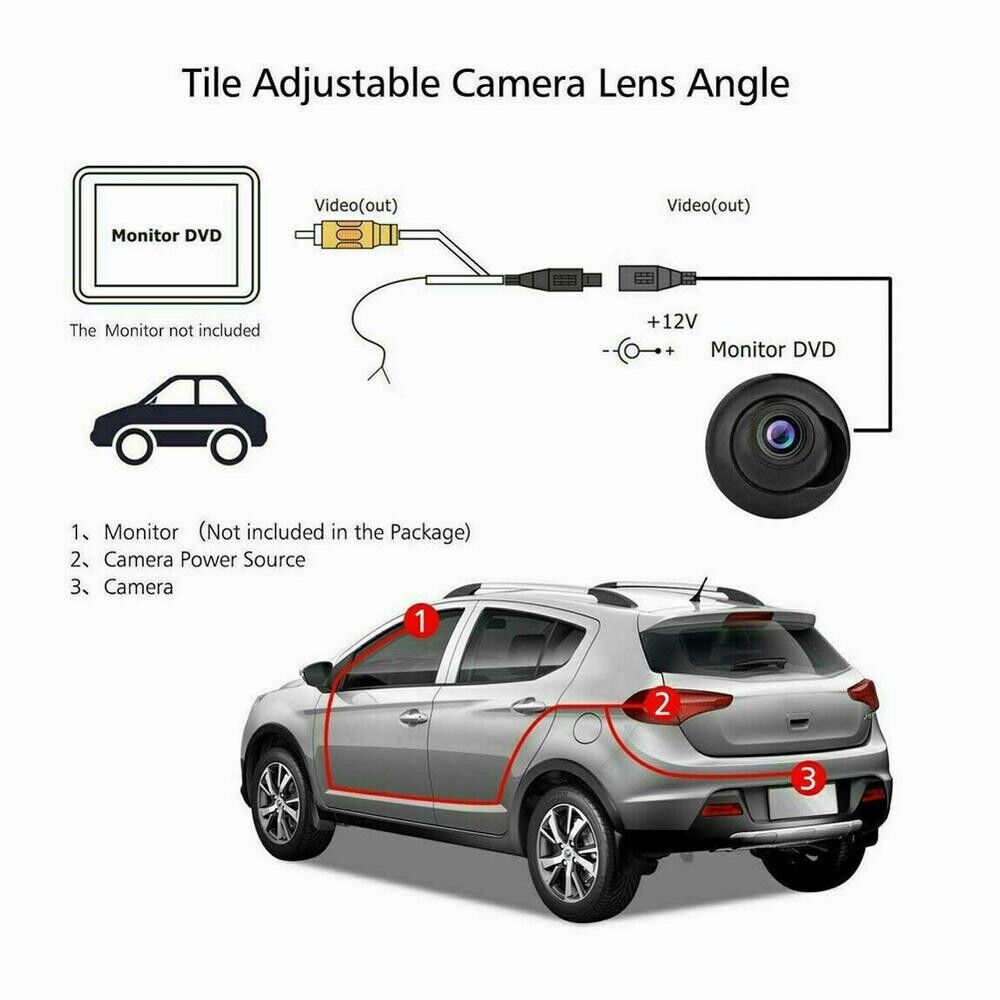

● Video output: RCA connector, 1.0VP-P, 75OHM
● Power supply: DC 12V
● Power consumption: Not more than 300Ma
● TV system: NTSC

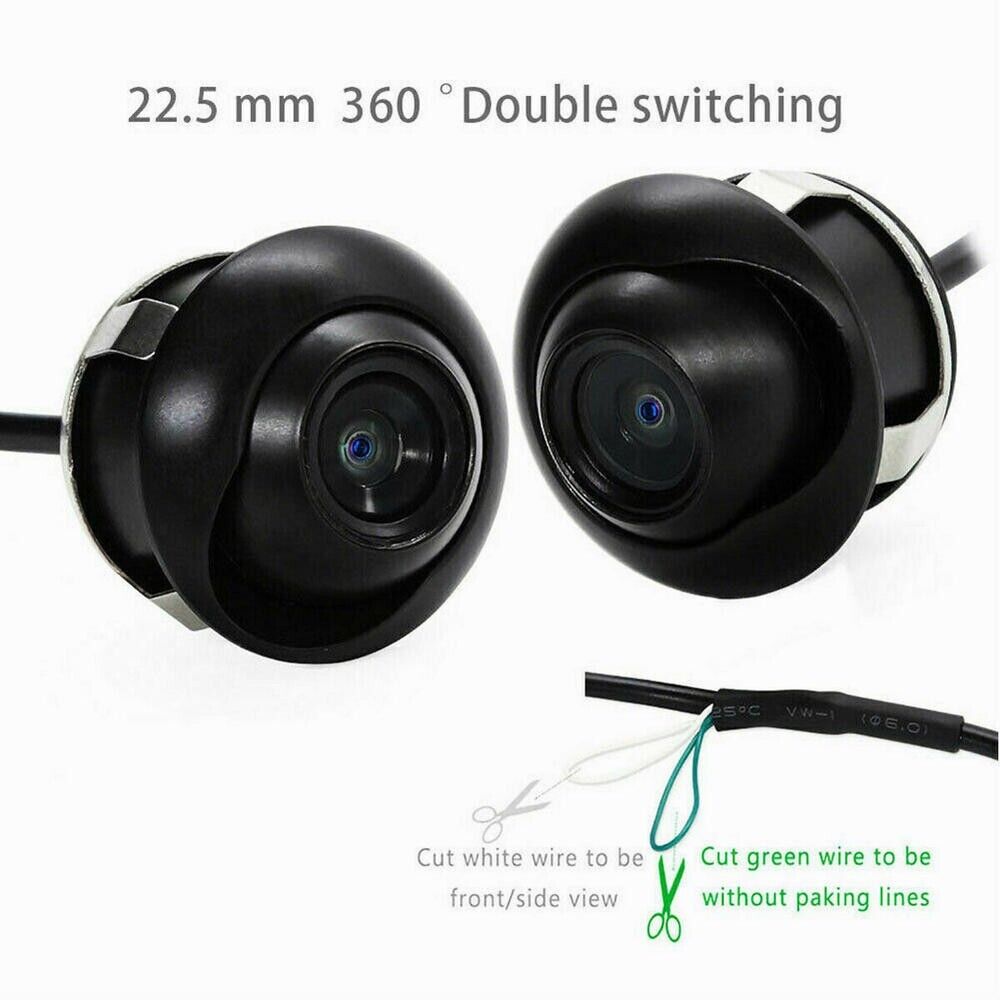

● Lens angle: 170, rotatable 360 °
● Scanning system: 2: 1 interlace

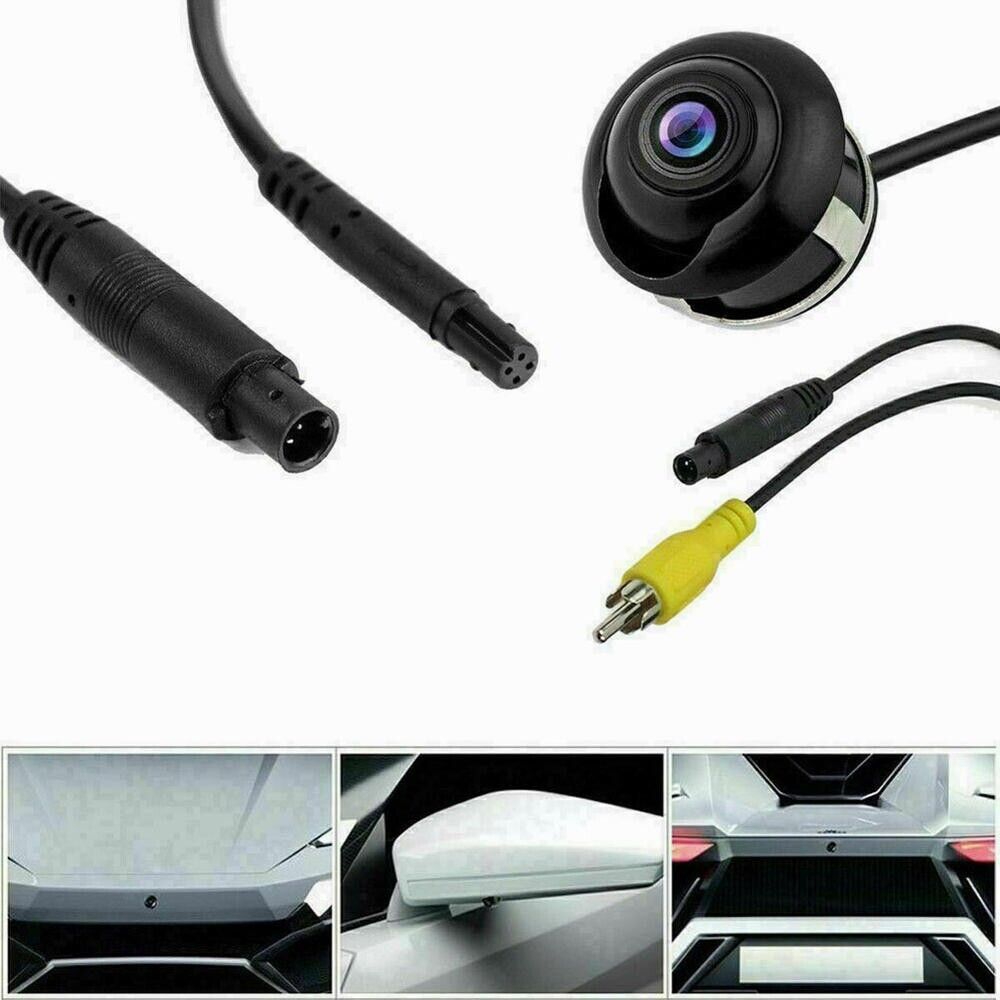

● Placement on Vehicle: Rear, Front, Left, Right

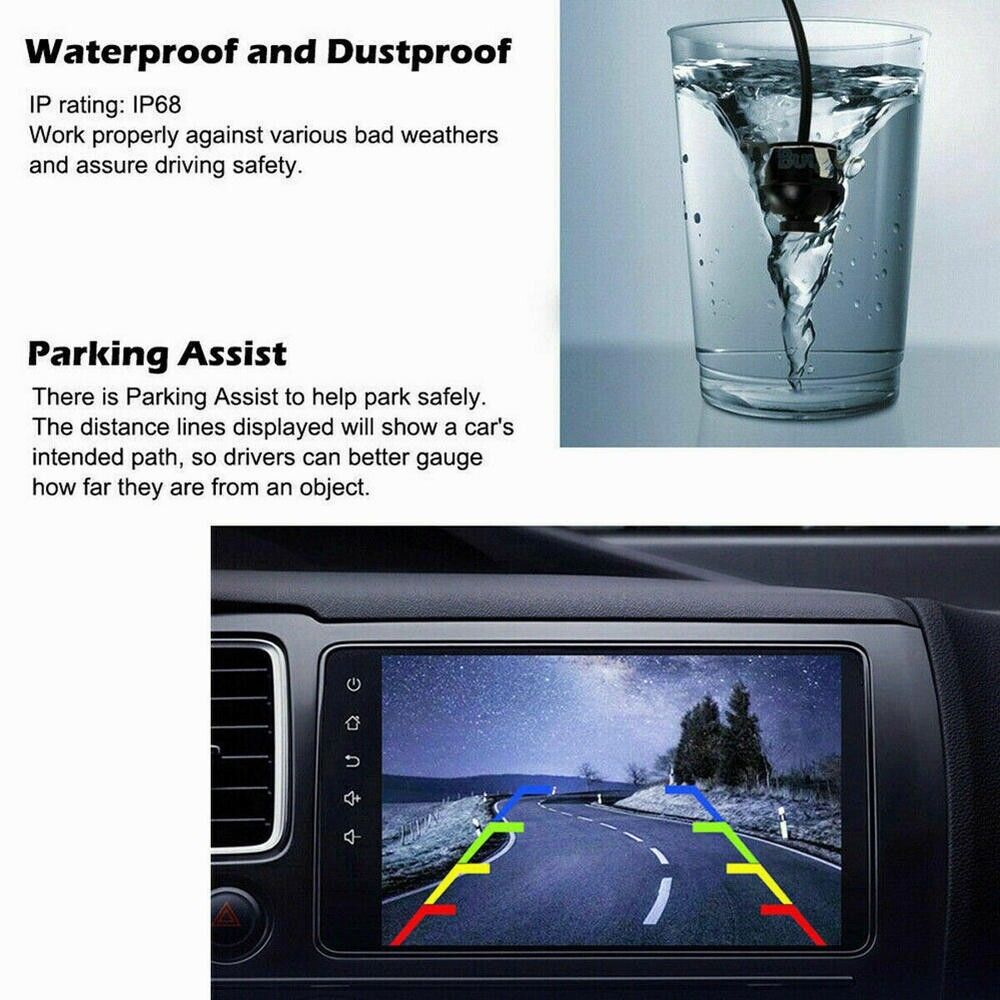

● IP rating: IP68
● Operating temperature: -20C ~ + 75C, RH95% max
● Storage temperature: -40 ° C + 85 ° C, RH95% maximum
● Automatic backlight compensation BLC and AGC
● Video cable length: Approx. 6 meters
● Power cord length: Approx.1.5 meters

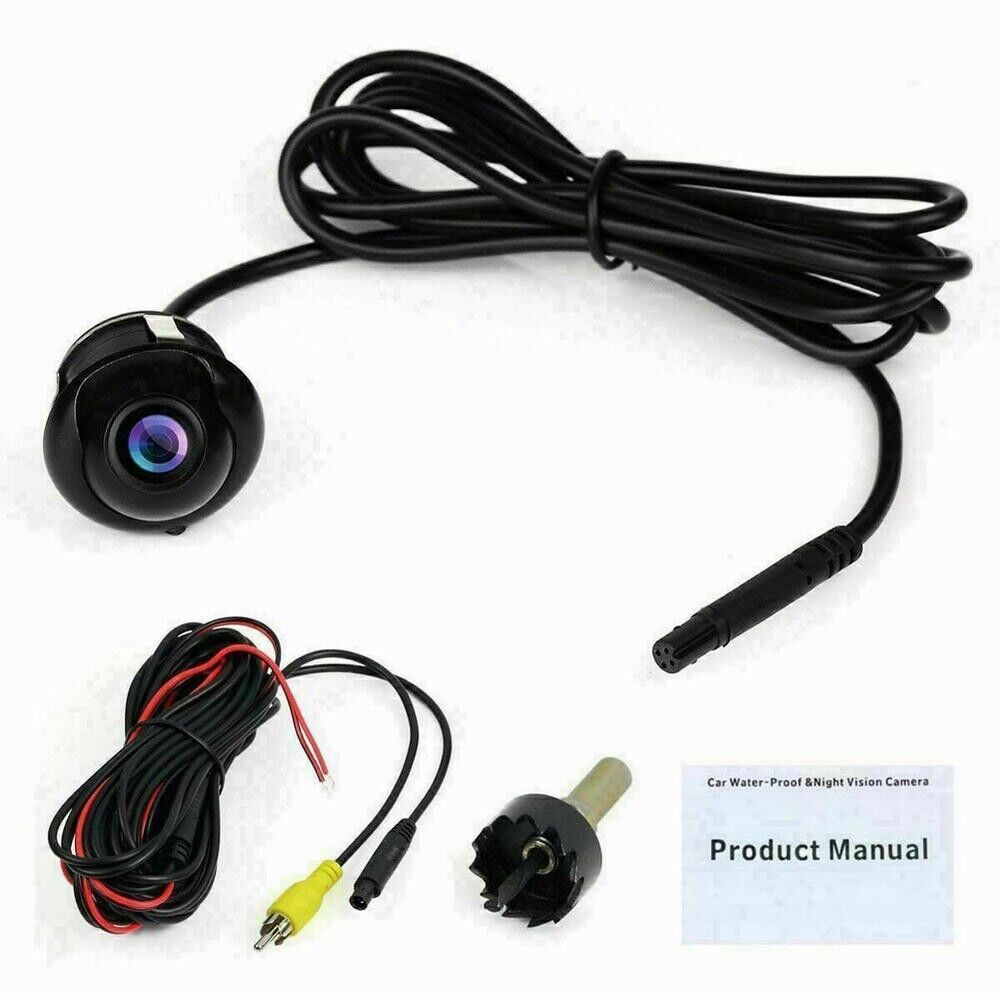

Package
1 x Camera
1 x 6m cable 4pin to RCA
1 x Instruction manual
