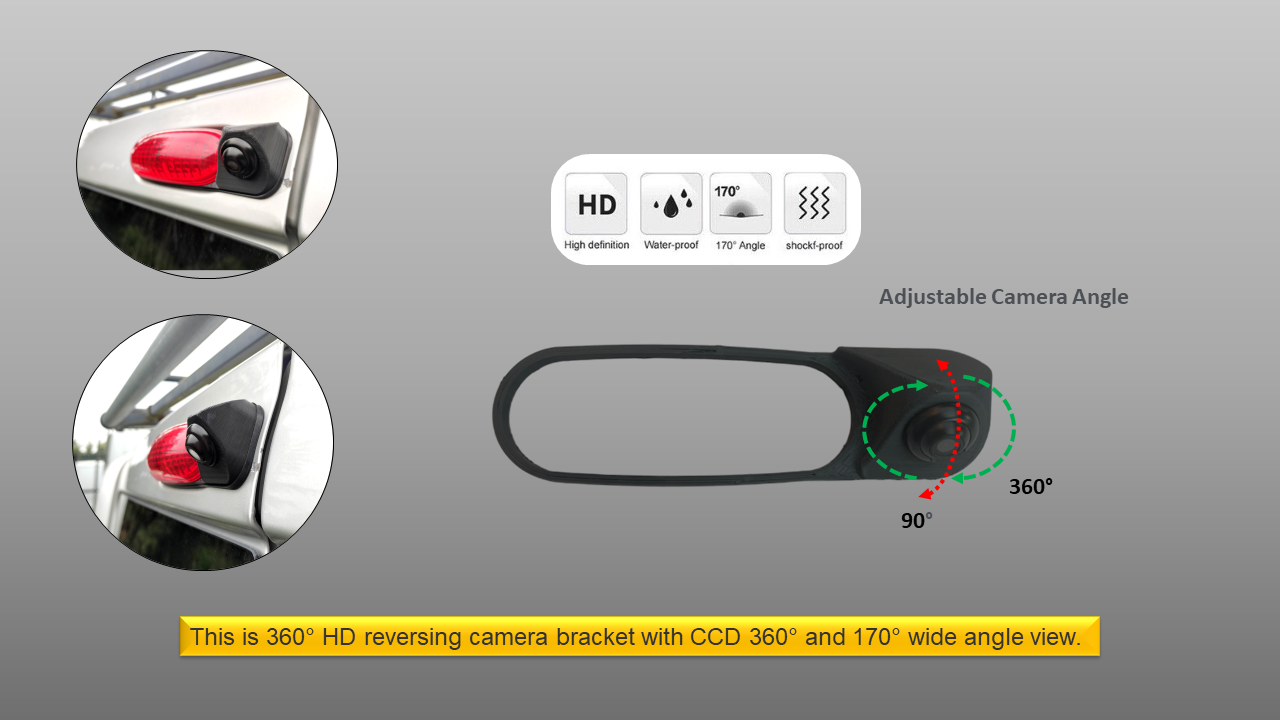

360° HD reversing universal camera with CCD360° and 170° wide angle view. It provides security and high-quality image. Video displays on car DVD player, monitor etc.

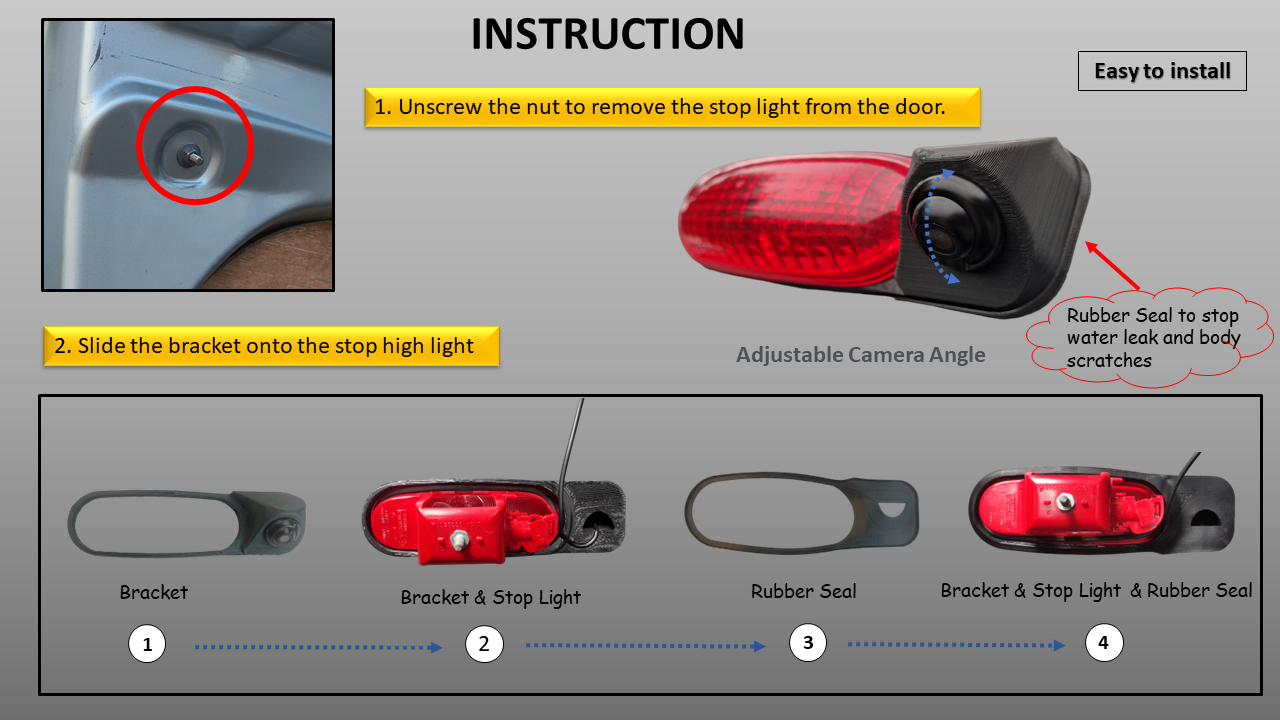

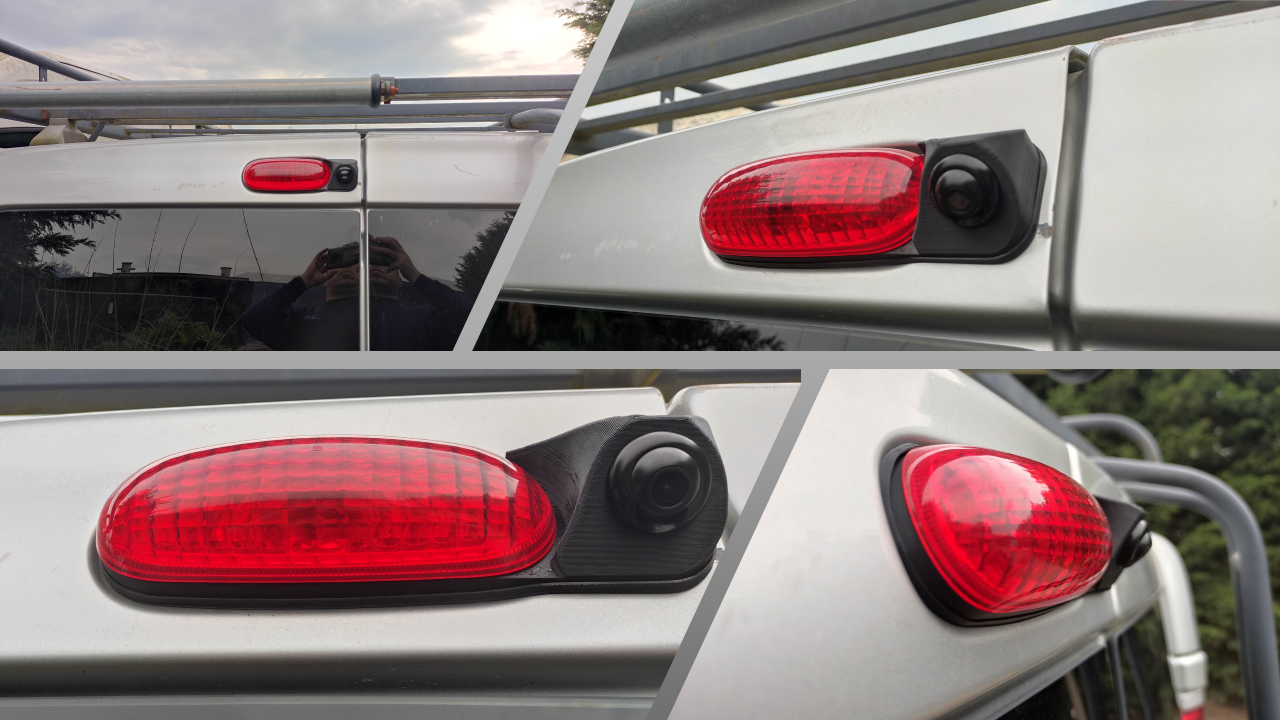

3D Printed bracket for reversing camera designed for rear break high lamp and easy fitment and for everyone who planning setup reversing camera for own van this is good product for low price made from ABS material which is very strong and waterproof.

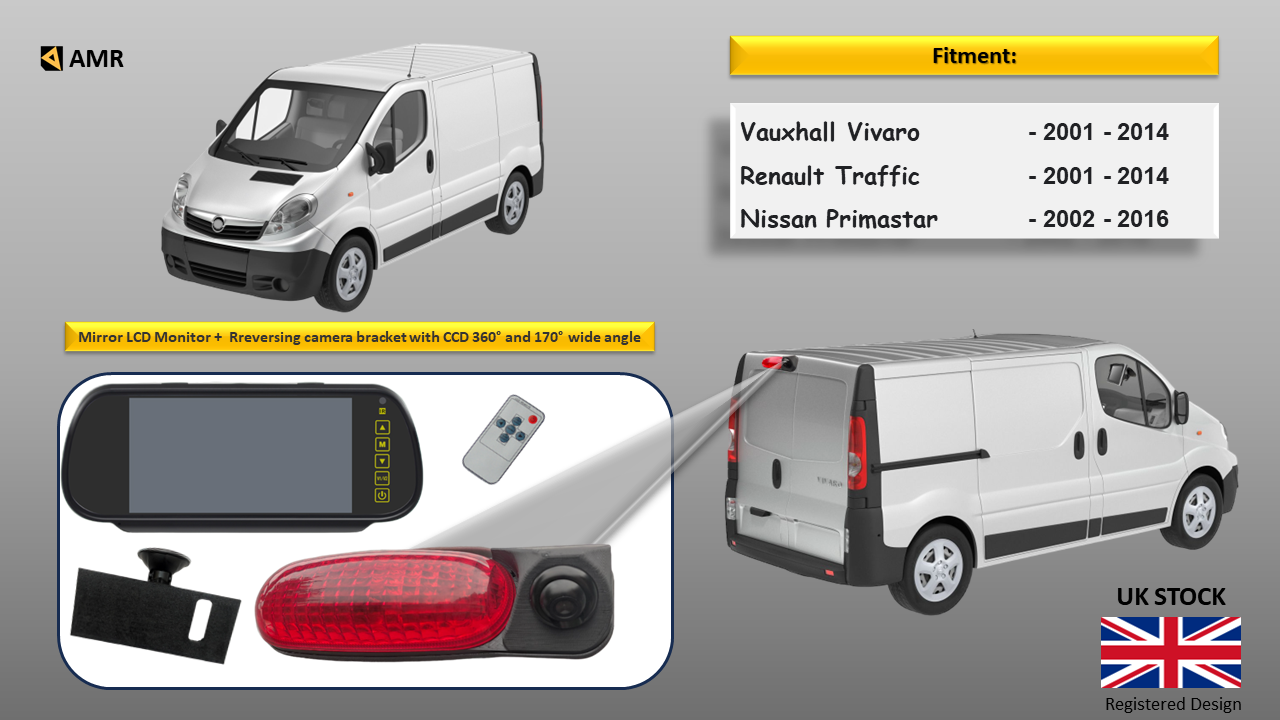

Fitment:
Vauxhall Vivaro - 2001 - 2014
Renault Traffic - 2001 - 2014
Nissan Primastar - 2002 - 2016
Camera Features:
Colour : Black
HD 170° wide angle view
Image area:3.584 mm *2.688 mm
TV system: PAL/NTSC
Scanning system: 2:1 interlace
S / N ratio : more than 48dB
Support CCD Colour sensor
Video output: 1.0VP-P,75 OHM
Waterproof design: IP67
Work condition: -20°to 75°/RH95% max
Power supply: DC 12V
Length of the video cable : 600cm
Automatic Backlight Compensation BLC and AGC
Min Illumination:0.01 Lux/F=1.2(0 Lux with IR on)

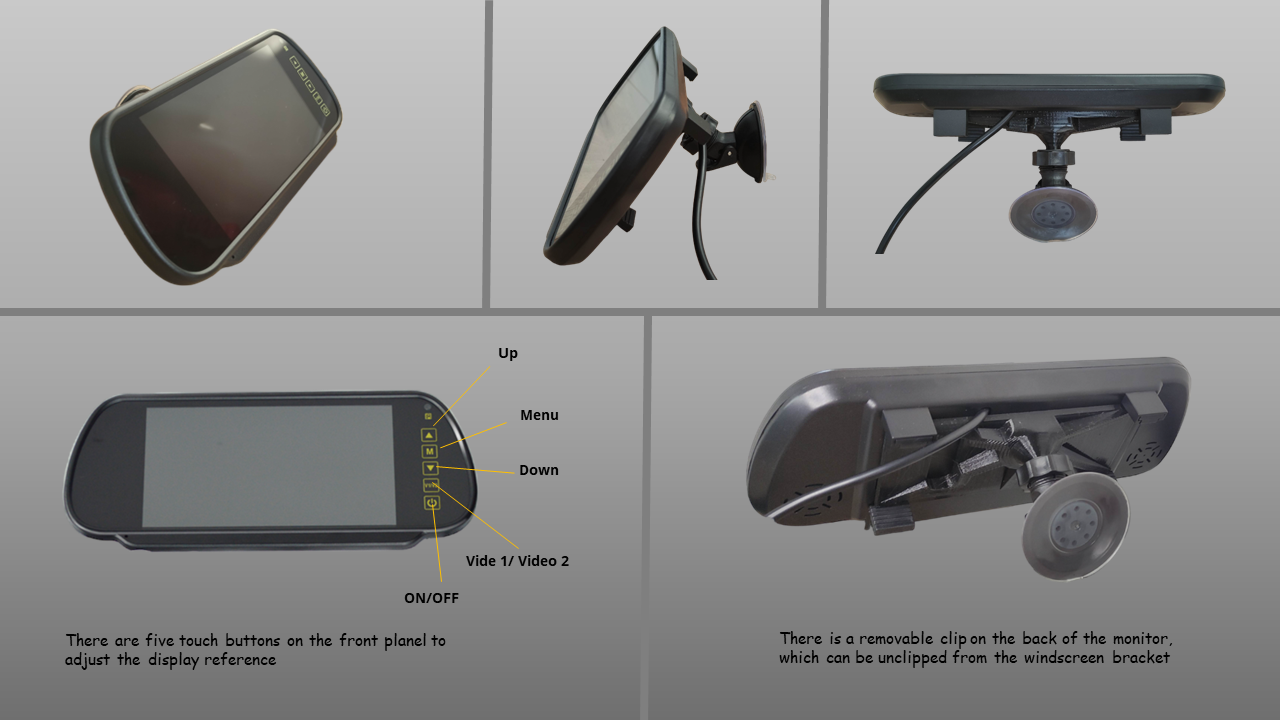

Monitor Features:
Screen size: 7 inch
Resolution: 800 × RGB x 480
Format: NTSC / PAL (Auto)
Backlight: LED
Operating temperature range: -20 ~ 70°
Power consumption: 7W
Key features: menu key, arrow keys
Signal Input: two-way AV video input
Parking rear-view priority: the monitor will start up automatically and synchronously display the video from reversing camera when you're reversing your van.
The brightness, contrast, and colour are adjustable through the buttons at the front of the monitor.
